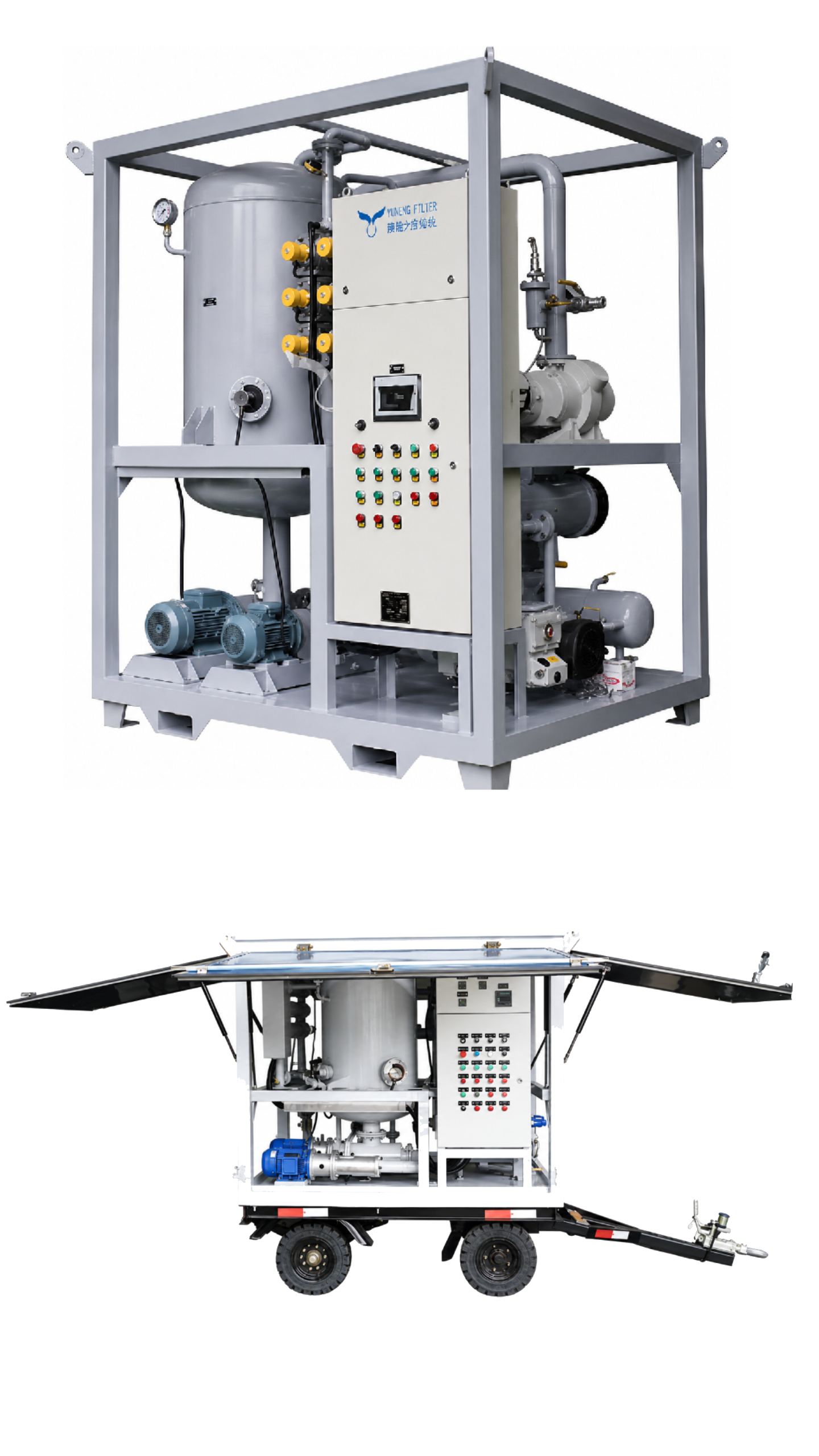

YUNENG Transformer Oil Filtration Machines

YUNENG Transformer Oil Filtration Machines are designed to efficiently remove moisture, gases, impurities, and contaminants from transformer oil, helping to improve insulation performance, extend transformer life, and ensure reliable electrical system operation. Featuring advanced vacuum dehydration and filtration technology, these machines deliver safe, efficient, and dependable performance in demanding industrial environments.

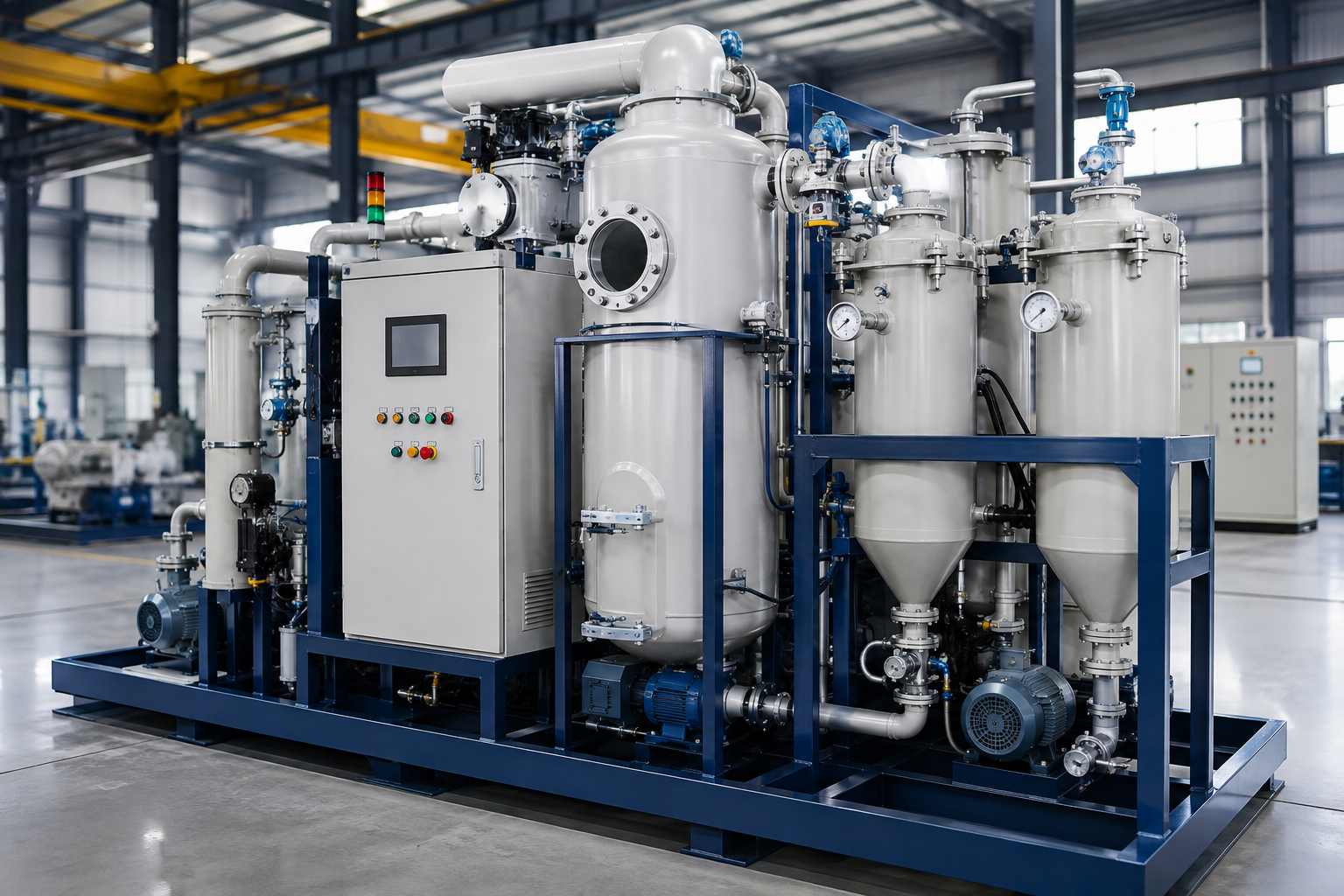

Key Features

Advanced two-stage transformer oil filtration technology
High-efficiency filtration and vacuum dehydration system
User-friendly operation and PLC controls
Fast, safe, and reliable performance
Precise temperature control system
Suitable for continuous industrial applications
Robust construction for long service life
Supplied and operated by qualified technicians

Model 6KL

Specifications

Country of Origin: China
Capacity: 6 KL
Nominal Flow Rate: 6,000 L/hr
Working Flow Rate: 100 L/min
Working Pressure: ≤ 0.5 MPa
Working Vacuum Pressure: ≤ 80 Pa
Recommended Continuous Operation: Up to 8 hours
Temperature Control Range: 0°C to 100°C
Power Supply: 380V (±10%), 60Hz, 3-Phase, 3-Wire
Cooling Method:Air (Wind) Cooling

System Components

The 6KL two-stage transformer oil filtration machine includes:

Primary Filter
Heater
Vacuum Separation Chamber
Vacuum Pump
Condenser
Oil Transfer Pump
Roots Pump
Fine Filter
Piping System
Valves
Electrical Control System

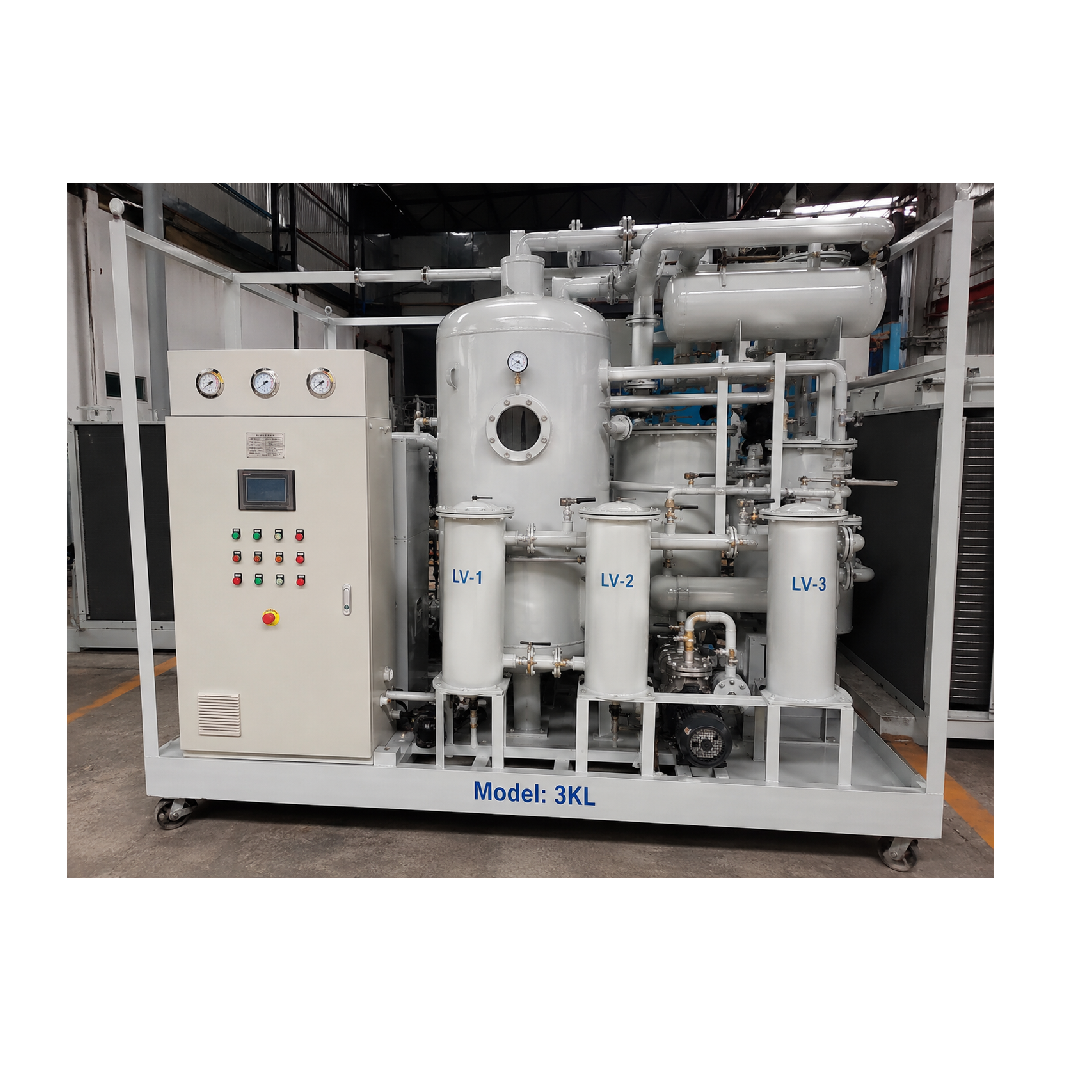

Model 3KL

Specifications

Country of Origin: China
Capacity: 3 KL
Nominal Flow Rate: 3,000 L/hr
Working Flow Rate: 50 L/min
Working Vacuum Pressure: ≤ 80 Pa
Recommended Continuous Operation: Up to 8 hours
Temperature Control Range: 0°C to 100°C
Power Supply: 380V (±10%), 60Hz, 3-Phase, 4-Wire
Cooling Method: Air (Wind) Cooling

Professional Operation

To ensure maximum efficiency, safety, and equipment reliability, all YUNENG Transformer Oil Filtration Machines are operated by trained and qualified technicians. Machines are provided together with professional operator support to guarantee optimum performance and compliance with operational requirements.

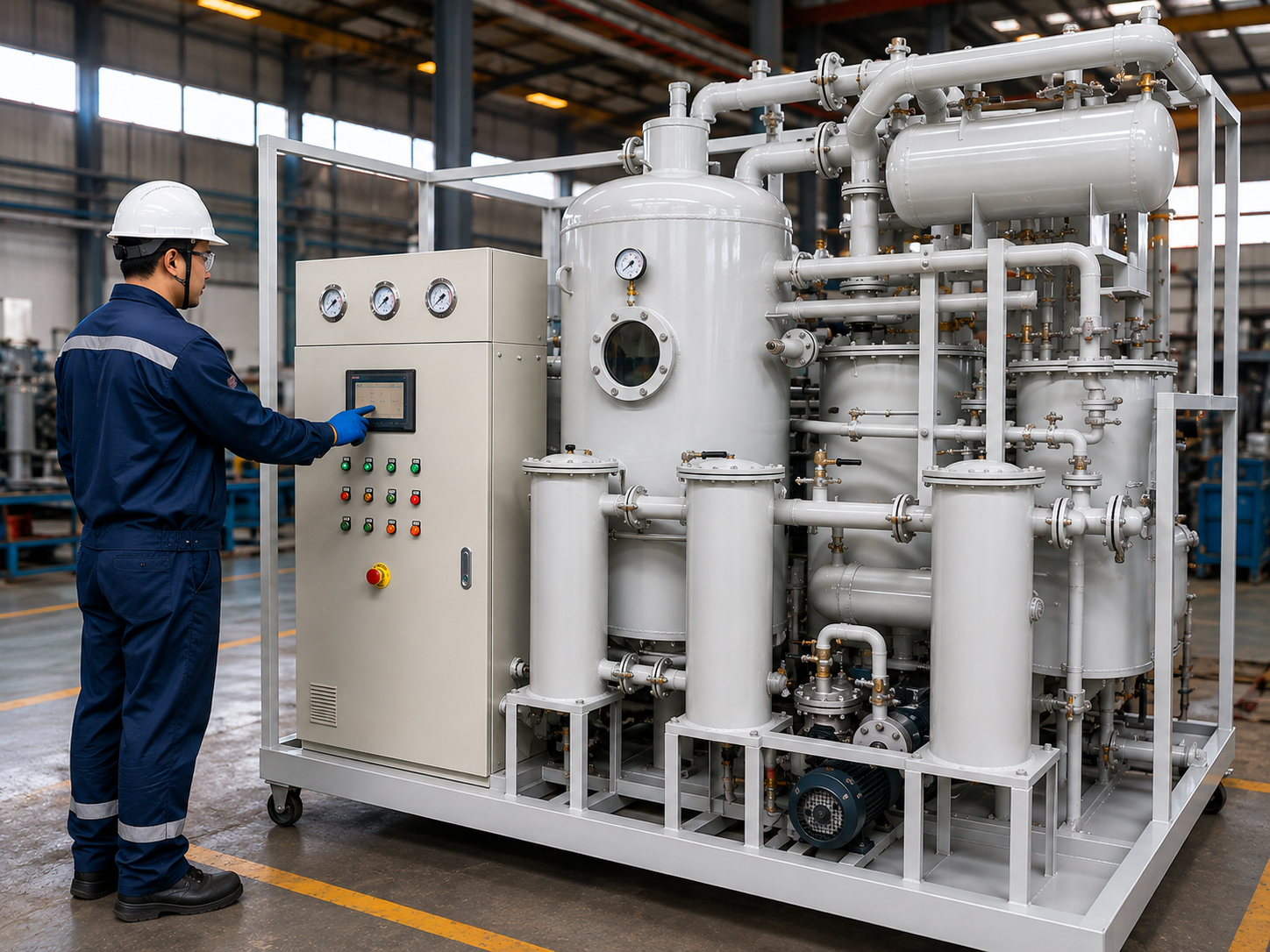

Applications

Power Transformers
Electrical Substations
Industrial Power Systems
Transformer Maintenance Projects
Oil Regeneration and Purification Services
Utility and Energy Sector Operations

Reliable. Efficient. Professional Transformer Oil Filtration Solutions.
